Hot tapping machines.

Propipe has been designing hot tapping machines for 20 years, combining engineering experience with the requirements of pipeline intervention projects.

Choose a PTM series to view its machines, technical specifications and videos.

Propipe PTM-1000 series reference equipment

PTM-1000

Manual machines with an optional pneumatic drive.

Specifications & equipment

Three manual machines with 18, 28 and 32-inch strokes. Additional 20 or 24-inch strokes can be discussed for specific requirements.

PTM-1000 model specifications
ModelTapping rangeStrokeWeight
PTM-1018-MN¼–4 in18 in32 lb
PTM-1028-MN¼–6 in28 in41 lb
PTM-1032-MN¼–6 in32 in50 lb
PTM-1000 pressure & temperature reference
Service conditionPressureTemperature
Maximum working pressure100 bar38 °C
Maximum continuous service70 bar177 °C
Intermittent service48 bar−29 °C to 371 °C

Optional PPM-1000 pneumatic drive

The original range includes a pneumatic air wrench for the PTM-1000 machines.

Power0.6 HP
Maximum torque90 Nm
Rotation speed150 rpm
Air consumption13 l/s
Weight2.35 kg

See the machines in action

PTM-1018 demonstration

PTM-1030 demonstration

Propipe PTM-3000 series reference equipment

PTM-3000

Pneumatic & hydraulic machines.

Specifications & equipment

Available models
ModelDriveTapping range
PTM-3048-PNPneumatic4–12 in
PTM-3070-HYDHydraulic4–20 in
Drive optionsPneumatic or hydraulic
Stroke options48, 66 or 70 in
Reference dimensionsLength 2100 mm · Width 500 mm · Height 536 mm
Reference weight337 kg
Mounting4 in · Class 600 · RTJ flange
Boring barChrome-plated, one-piece bar
Machine pressure rating100 bar
Spindle speed40 rpm with Propipe H1515 power pack
Feed rate0.07 mm/rev
SealingChevron gland · component rating 400 bar at 100 °C

Equipment features

Reference components include a lower crank, measuring rod, retainer rod pusher, ring gasket, bleeder valve, nipple, motor adapter, nuts and bypass gauge.

The seal component rating is separate from the machine working-pressure rating. Confirm the final configuration with Propipe.

Matching power unit

See the machines in action

PTM-3070 test

Propipe PTM-5000 series reference equipment

PTM-5000

Hydraulic tapping equipment.

Specifications & equipment

Available models
ModelDriveTapping range
PTM-5108-HYDHydraulic12–42 in
DriveHydraulic
Stroke options78, 108 or 130 in
Reference dimensionsLength 3100 mm · Width 870 mm · Height 760 mm
Reference weight990 kg
Mounting6 in · Class 600 · RTJ flange
Boring bar100 mm diameter · chrome-plated, one-piece bar
Machine pressure rating100 bar
Spindle speed25 rpm with Propipe H3024 power pack
Feed rate0.12 mm/rev
SealingChevron gland · component rating 400 bar at 100 °C

Equipment features

Reference components include a lower crank, measuring rod, retainer rod pusher, ring gasket, bleeder valve, nipple, motor adapter, nuts and bypass gauge.

The seal component rating is separate from the machine working-pressure rating. Confirm the final configuration with Propipe.

Matching power unit

See the machines in action

PTM-5108 flat cutting test

Propipe PTM-7000 series reference equipment

PTM-7000

Hydraulic machines for project-specific duties.

Specifications & equipment

DriveHydraulic
Stroke configurationConfirm the required stroke with Propipe
Reference dimensionsLength 3960 mm · Width 975 mm · Height 1130 mm
Reference weight1130 kg
Mounting8 in · Class 600 · RTJ flange
Boring bar150 mm diameter · chrome-plated
Machine pressure rating100 bar
Spindle speed15 rpm with Propipe H3024 power pack
Feed rate0.12 mm/rev
SealingChevron gland · component rating 400 bar at 100 °C

Equipment features

An absolute linear scale for depth measurement, a hydraulic motor-driven spindle with an HTD belt, and hydraulic rapid boring-bar travel are described for this series.

The seal component rating is separate from the machine working-pressure rating. Confirm the final configuration with Propipe.

TECHNICAL RESOURCES

Keep the catalogue close.

Explore the range and prepare your project requirements.

MACHINES IN PRACTICE

Working on real pipelines.

Explore the Projects archive ↗
2023 03 10 09.15.44 scaled 1

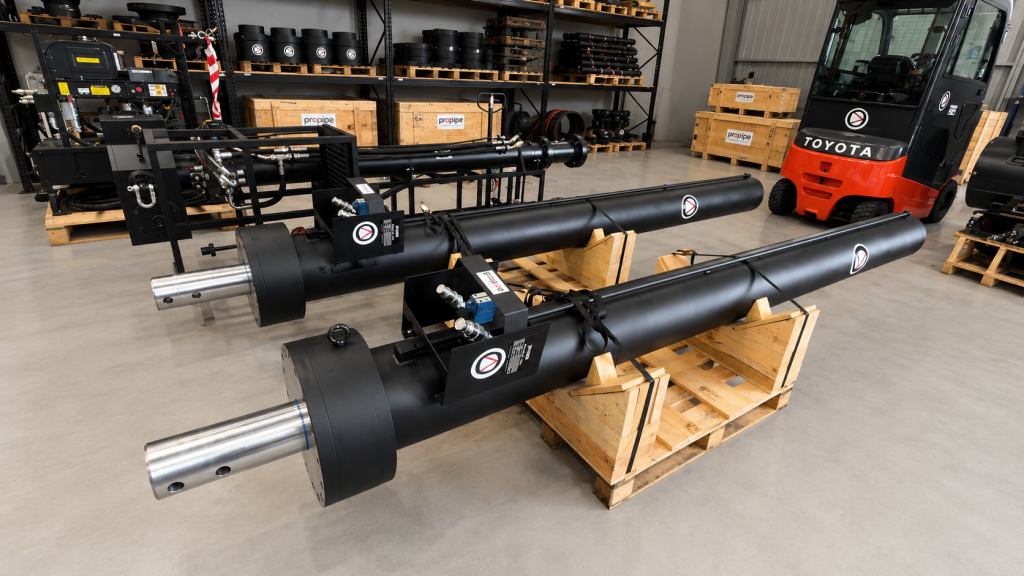

Complete Hottap & LinesTop Equipment

In a major development, Propipe, a leading provider of pipeline maintenance solutions, has successfully delivered complete Hottap and Linestop Equipment for a high-pressure transmission pipeline in central Europe. The PTM-5108 tapping

Read reference ↗
DSC03988 scaled 1

Hottap Machine PTM-5108

Propipe TM5108 14″-42″ with 108″ stroke test drilling a 25mm thick plate with 16″ cutter while all cutter tips are cutting at the same time. Propipe machines are thoroughly and

Read reference ↗
